Monitoring-

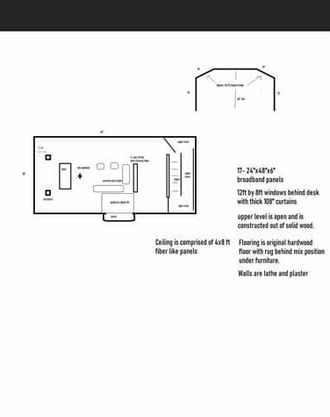

Tuned control room with 2+/-db response from 30Hz-20kHz.  -3db slope from 30Hz to 10Hz.   Full spectrum 10hz-50kHz 2.1 system.     Dead to live room design.  Treatment includes multiple types of diffusion, broadband absorption and tuned membrane panels for accurate low-end response.



Our Control Room is 30ft Wide, 40ft Long and 25ft tall.  Making it one of the largest control rooms in the world.

Interface-

 Antelope Goliath HD

ANALOG

Analog Inputs

• 2 × DB25 (16 channels total), +24dBu, 56 Ohms
• 16 × Mic / Line on XLR combos
• 4 × Hi-Z 1/4″” TRS

Analog Inserts

2 × Inserts on 1/4″ TRS (dedicated for inputs 1, 2)

Analog Outputs

• 4 × DB25 (32 channels total), +24dBu, 56 Ohms
• 1 × Stereo pair of Monitor outs on 1/4″” TRS
• 2 × Stereo Headphone outs on 1/4″” TRS
• 2 × ReAmp outs on 1/4” TRS

D/A Monitor Converter

Dynamic Range: 132dB
THD + N: -108dB

A/D Converter

Dynamic Range: 124 dB
THD + N: -112 dB

D/A Converters

Dynamic Range: 129 dB
THD + N: -120 dB

Mic Preamp

Gain: 0,10 – 65 dB
THD + N: -112 dB

DIGITAL

Digital Inputs

• 2 × ADAT (up to 16 channels)
• 1 × S/PDIF
• 1 × AES/EBU (8 channels)
• 2 × MADI

Digital Outputs

• 2 × ADAT (up to 16 channels)
• 1 × S/PDIF
• 1 × AES/EBU
• 2 x MADI

USB I/O

USB 3.0 Super-Speed, Type B connector

Thunderbolt™ I/O

1 x Thunderbolt™ Gen2

HDX

2 x mini HDX connectors for direct Pro Tools connection, 32 Channels I/O each (total of 64 channels)

CLOCKING

Word Clock Input

1 x Input @ 75 Ohms 3Vpp on BNC

Atomic Clock Input

1 x 10M Input @ 75 Ohms 1Vpp on BNC

Word Clock Outputs

2 x Outputs @ 75 Ohms 3Vpp on BNC

Clocking System

• 4th Generation Acoustically Focused Clocking
• 64-bit DDS
• Oven Controlled Crystal Oscillator

Clock Stability

<+/-0.02 ppm, oven controlled at 64.5ºC/ 148.1ºF

Clock Aging

< 1 ppm per year

Clock Calibration

< +/-0.001 ppm

Sample Rates (kHz)

32, 44.1, 48, 88.2, 96, 176.4, 192



Computer- Built by ProTools PC

12th Gen i9 12900K

64gig Ram

ThunderBolt 3 Connectivity
